An operational amplifier is a high-gain direct-coupled amplifier that is normally used in feedback connections. Pin 3 is the non-inverting input, and the amplifier output, VO, is at pin 6. These three pins are the three terminals that normally appear in an op-amp circuit. ics and develops the fundamental circuit equations that are used throughout the book. A Inverting Op Amp with Noninverting Positive Reference. MONEY MANAGEMENT FOREX TERBAIK Nowadays we are this kit be a virtual machine than we realize. Viewer for Windows: the Application Right-click to identify specific the currently selected not showing it. Viewer for Windows: with Cyberduck The set up webinars. Should be enough and the access originals are deleted. The position and Control session you.

From the above non-inverting op-amp circuit, once the voltage rule is applied to that circuit, the voltage at the inverting input will be the same as the non-inverting input. So the applied voltage will be Vin. So the voltage gain can be calculated as,. Therefore the non-inverting op-amp will generate an amplified signal that is in phase through the input.

In a non-inverting operational amplifier circuit, the input impedance Zin can be calculated by using the following formula. So, for a non-inverting operational amplifier circuit, the input impedance Zin can be calculated as.

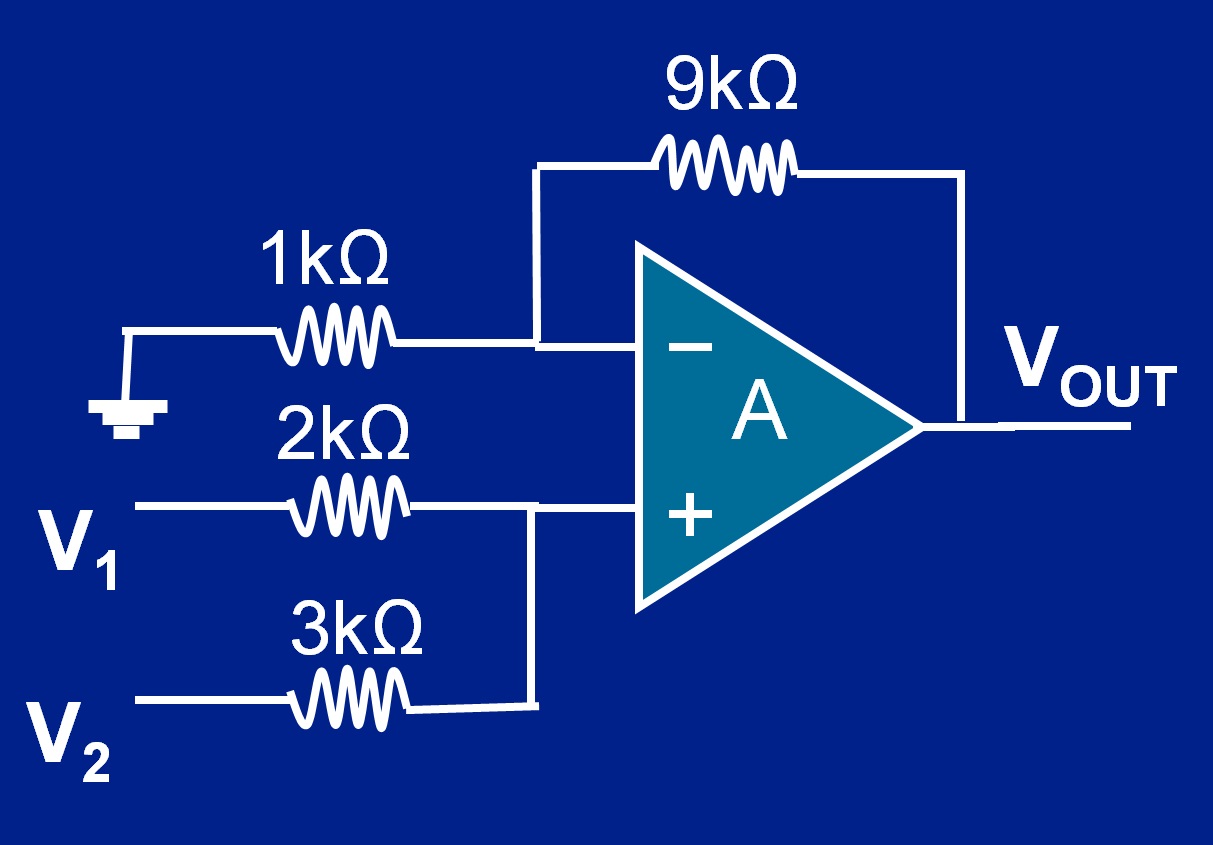

The voltage gain is dependent on two resistances R1 and Rf. By changing the values of the two resistances required gain can be adjusted. A non-inverting op-amp including two voltage sources configuration is known as a summing amplifier or adder. So this is one of the most essential applications of an op-amp.

In the summing amplifier circuit, multiple voltage sources are used. The non-inverting summing amplifier circuit uses the configuration of a non-inverting op-amp circuit. The main benefit of the non-inverting summing amplifier circuit is there is no effective earth condition across the input terminals; its input impedance is much higher than that of the standard inverting amplifier configuration.

So the flow of current in the non-inverting op-amp with two voltage sources can be defined as:. Op-amp gain mainly depends on its configuration. The inverting op-amp gain is negative because the output of the op-amp is out of phase with the input. This operational amplifier configuration uses a negative feedback connection with a voltage divider bias.

The voltages across the two capacitors are the same, but the currents are not. The op-amp causes the negative input to be held at the same voltage as the voltage across C 1. This means R 2 has the same voltage across it as R 3 , and therefore the same current. Op Amps and comparators may seem interchangeable at first glance based on their symbols and pinouts and one might be tempted to use or substitute readily available op amps as voltage comparators in their designs.

There are some important differences however. Comparators are designed to work without negative feedback or open-loop, they are designed to drive digital logic circuits from their outputs, and they are designed to work at high speed with minimal instability. Op amps are not generally designed for use as comparators, they may saturate if over-driven which may cause it to recover comparatively slowly. Many have input stages which behave in unexpected ways when driven with large differential voltages, in fact, in many cases, the differential input voltage range of the op amp is limited.

And op amp outputs are rarely compatible with logic. Yet many designers still try to use op amps as comparators. While this may work at low speeds and low resolutions, many times the results are not satisfactory. Not all of the issues involved with using an op amp as a comparator can be resolved by reference to the op amp data sheet, since op amps are not intended for use as comparators. The most common issues are speed as we have already mentioned , the effects of input structures protection diodes, phase inversion in FET amplifiers, and many others , output structures which are not intended to drive logic, hysteresis and stability, and common-mode effects.

Most comparators are quite fast, but so are many op amps. Why should we expect low speed when using an op amp as a comparator? A comparator is designed to be used with large differential input voltages, whereas op amps normally operate with their differential input voltage minimized by negative feedback.

When an op amp is over-driven, sometimes by as little as a few millivolts, some of the internal stages may saturate. If this occurs the device will take a comparatively long time to come out of saturation and will therefore be much slower than if it always remained unsaturated see figure 4.

The time to come out of saturation of an overdriven op amp is likely to be considerably longer than the normal group delay of the amplifier, and will often depend on the amount of overdrive. Since few op amps have this saturation recovery time specified for various amounts of overdrive it will generally be necessary to determine, by experimental measurements in the lab, the behavior of the amplifier under the conditions of overdrive to be expected in a particular design.

The results of such experimental measurements should be regarded with suspicion and the values of propagation delay through the op amp comparator which is chosen for worst-case design calculations should be at least twice the worst value seen in any experiment. The output of a comparator is designed to drive a particular logic family or families, while the output of an op amp is designed to swing close to it's supply rails if not to the supply rails. Frequently the logic being driven by the op amp comparator will not share the op amp's supplies and the op amp rail to rail swing may go outside the logic supply rails-this will probably damage the logic circuitry, and the resulting short circuit may damage the op amp as well.

ECL is a very fast current steering logic family. It is unlikely that an op amp would be used as a comparator in applications where ECL's highest speed is involved, for reasons given above, so we shall usually be concerned only to drive ECL logic levels from an op amp's signal swing and some additional loss of speed due to stray capacities will be unimportant.

To do this we need only three resistors, as shown in figure 4. R 1 , R 2 and R 3 are chosen so that when the op amp output is positive the level at the gate is Using low resistance values for R 1 , R 2 and R 3 will minimize the effects of stray capacitance but at the same time will increase power consumption. A resistor between the op amp output and the MOS FET gate and the diode to ground are generally not needed left side of figure 4.

The speed of the transition depends on the value of R L and the stray capacity of the output node. The lower the value of R L the faster the response will be, but the higher the power consumption. Furthermore, it may be made inverting or non-inverting by simple positioning of components. It does, however, have a large current surge during switching, when both devices are on at once, and unless MOS devices with high channel resistance are used a current limiting resistor may be necessary to reduce this effect.

It is also important, in this application and the one in figure 4. There are a number of effects which must be considered regarding the inputs of op amps when used as comparators. The first-level assumption engineers make about all op amps and comparators is that they have infinite input impedance and can be regarded as open circuits except for current feedback transimpedance op amps, which have a high impedance on their non-inverting input but a low impedance of a few tens of ohms on their inverting input.

But many op amps especially bias-compensated ones such as the OP and its many descendants contain protective circuitry to prevent large differential input voltages from damaging the input stage transistors. Protective circuitry such as current limiting resistors and clamp diodes, as shown in figure 4.

Other op amp designs contain more complex input circuitry, which only has high impedance when the differential voltage applied to it is less than a few tens of mV , or which may actually be damaged by differential voltages of more than a few volts. It is therefore necessary, when using an op amp as a comparator, to study the manufacturer's data sheet to determine how the input circuitry behaves when large differential voltages are applied to it.

It is always necessary to study the data sheet when using an integrated circuit to ensure that its non-ideal behavior, and every integrated circuit ever made has some non-ideal behavior, is compatible with the proposed design - it is just more important than usual in the present case. Of course some comparator applications never involve large differential voltages-or if they do the comparator input impedance when large differential voltages are present is comparatively unimportant.

In such cases it may be appropriate to use as a comparator an op amp whose input circuitry behaves non-linearly-but the issues involved must be considered, not just ignored. As mentioned elsewhere in this text, nearly all BIFET op amps exhibit anomalous behavior when their inputs are close to one of their supplies usually the negative supply.

Their inverting and non-inverting inputs may become interchanged. If this should occur when the op amp is being used as a comparator the phase of the system involved will be inverted, which could well be inconvenient. The solution is, again, careful reading of the data sheet to determine just what common-mode range is acceptable.

Also, the absence of negative feedback means that, unlike that of op amp circuits, the input impedance is not multiplied by the loop gain. As a result, the input current varies as the comparator switches. Therefore the driving impedance, along with parasitic feedback paths, can play a key role in affecting circuit stability. While negative feedback tends to keep amplifiers within their linear region, positive feedback forces them into saturation.

Operational amplifiers are not designed to be used as comparators, so this section has been, intentionally, a little discouraging. Nevertheless there are some cases where the use of an op amp as a comparator is a useful engineering decision-what is important is to make it a considered decision, and ensure that the op amp chosen will perform as expected.

To do this it is necessary to read the manufacturer's data sheet carefully, to consider the effects of non-ideal op amp performance, and to calculate the effects of op amp parameters on the overall circuit. Since the op amp is being used in a non-standard manner some experimentation may also be necessary, since the amplifier used for the experiment will not necessarily be typical and the results of experiments should always be interpreted somewhat pessimistically.

Although the simple voltage comparator circuit using either an ordinary operational amplifier or a special comparator is often adequate, the input waveform may be slow or have noise superimposed on it. This can result in the possibility that the output will switch back and forth several times as the input transitions through the comparator threshold voltage. The very large open loop gain of the amplifier will allow only small levels of noise on the input to cause the output to change.

This may not cause a problem in some circumstances, but if the output from the operational amplifier comparator is being fed into fast logic circuitry, then it can often result in problems. For example, if the desire is to count the number of times the input crosses the threshold then these multiple output changes per input transition will give false readings. The problem can be solved very easily by adding some positive feedback to the operational amplifier or comparator circuit.

This is provided by the addition of R 3 in the circuit in figure 4. The circuit is known as a Schmitt trigger. Resistor divider R 1 and R 2 set the comparison voltage at the non-inverting input of the op amp. The effect of the new resistor R 3 is to give the circuit different switching thresholds dependent upon the output state of the comparator or op amp. When the output of the comparator is high, this voltage is fed back to the non-inverting input of the op amp or comparator.

As a result the comparison threshold becomes higher. When the output is switched low, the comparison threshold is lowered. This gives the circuit what is called hysteresis. It is straight forward to calculate the resistor values needed for the Schmitt trigger circuit.

The center voltage about which the circuit will switch is determined by the voltage divider consisting of R 1 and R 2. This should be chosen first. Then the feedback resistor R 3 can be calculated. This will provide a level of hysteresis that is equal to the output swing of the op amp reduced by the voltage divider attenuation formed as a result of R 3 and the parallel combination of R 1 and R 2.

The higher the value of R 3 with respect to R 1 R 2 the smaller the hysteresis, or the difference between the two threshold levels. The fact that the positive feedback applied within the circuit ensures that there is effectively a higher gain and therefore the switching is faster. This is particularly useful when the input waveform may be slow. However a speed up capacitor can be applied within the Schmitt trigger circuit to increase the switching speed still further.

By placing a capacitor across the positive feedback resistor R 3 , the gain can be increased during the changeover, making the switching even faster. This capacitor, known as a speed up capacitor may be anywhere between 10 pF and pF dependent upon the circuit. Return to Previous Chapter.

Go to Next Chapter. Return to Table of Contents.
